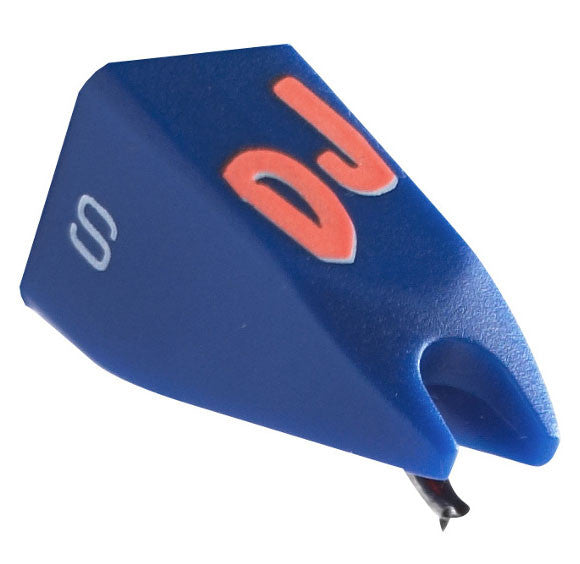

Ortofon DJ S Replacement Stylus

$ 69.99

Product Details

The DJ series has been known to many as the "jack of all trades"

DJ S is a solid-built cartridge in a new blue nylon material. It has a fine spherical stylus and a special developed and extremely balanced cantilever. Not only does the cartridge have a most sufficient tracking ability, it is also nearly unbreakable and provides the DJs with the most needed stringency. Furthermore, it equals very low record wear, an advantage for busy DJ.

The DJ series of cartridges are great for any style of music, and has been a favored choice of DJs around the world.



Features:

• Improved tracking
• Accurate sound reproduction
• A low wear stylus design
• Excellent groove handling even with less weight applied



Technical data

• Output voltage at 1000Hz, 5cm/sec.: 6 mV
• Channel balance at 1kHz: 2 dB
• Channel separation at 1kHz: 23 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3dB: 20-20.000 Hz
• Frequency response: 20-18.000 Hz +3 dB/-2 dB
• Tracking ability at 315 Hz at recommmende tracking force: 80 ?m
• Compliance, dynamic lateral: 9 ?m/m N
• Stylus type: Spherical
• Stylus tip radius: R 18 ?m
• Tracking force range: 2,0-4,0 g (20-40 mN)
• Tracking force recommended: 3,0 g (30 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF



  • Product Dimensions: 1.4 x 1.4 x 1.4 inches ; 0.8 ounces
  • Shipping Weight: 0.8 ounces

View More
